Bambu Lab H2D Combo with AMS 2 Pro

Bambu Lab H2D Combo with AMS 2 Pro
Image thumbnails
Max. speed
1000 mm/s
Build area
325 × 320 × 325 mm
Multi-color printing
Yes
Max. nozzle temperature
350 °C
€2,254.59€1,696.99-25 % · you save €557.60
  • Dual-nozzle multi-material 3D printing
  • Build volume 350*320*325 mm³
  • Optical motion calibration with 5μm resolution
  • Closed-loop servo extruder
  • Nozzle temperature 350°C and active chamber heating to 65°C
Availability:On backorder

Included free · Premium support for 1 week, SolidPrompt 3D editor for 1 year · See the editor

Extra services

+€184.09
+€169.70
+€8.16

Product bundles

+€98.36

Compatible Accessories

  • KAIZUO Glue Stick for 3D Printers - PVP Glue for Print Bed€2.42
  • XCR3D Glue Stick for 3D Printers - PVP Bed Adhesive€2.42
  • Dimafix printing adhesive - spray 400ml€16.36
Product code:6937285512307
Manufacturer:Bambu Lab

Our videos about this product

Play

Bambu Lab H2D Pro: Vylepšená 3D tiskárna pro profesionály

Why buy from us

More videos

Bambu Lab H2D - Vybalení/Unboxing, Nastavení a Tisk - Česky

Jak vypadá Bambu Lab H2D naživo? Exkluzivně z Polské výstavy + Robo pes od Unitree

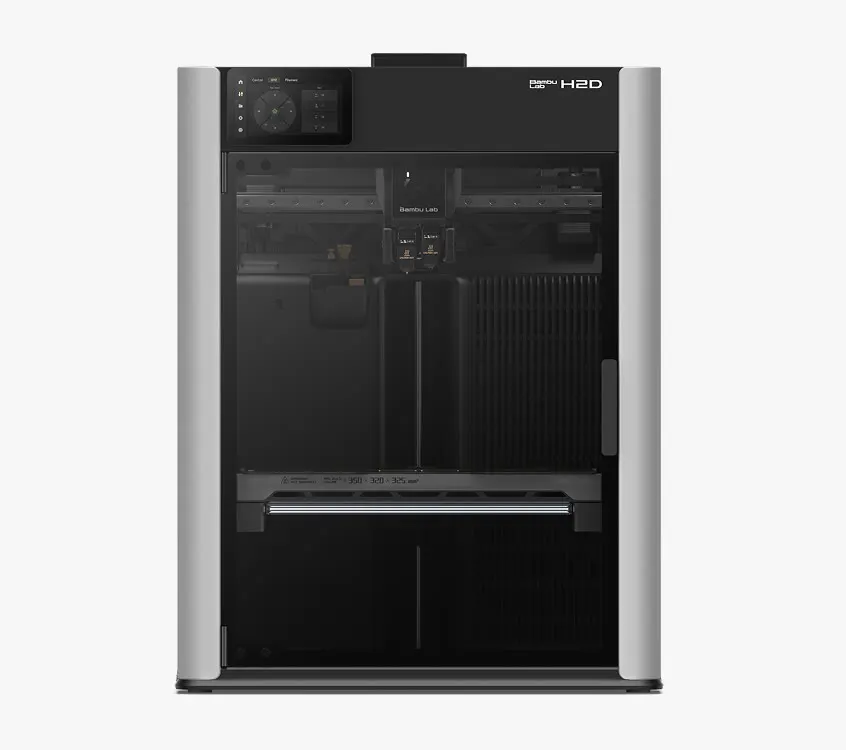

Bambu Lab H2D

Rethink personal manufacturing

Two nozzles, an actively heated chamber and a 350 × 320 × 325 mm work zone. H2D prints several materials at once and, once upgraded, handles laser work, cutting and drawing too.

H2D in numbers

maximum nozzle temperature
350 °C
active chamber heating
65 °C
print speed with the high-flow hotend
600 mm/s
sensors along the filament path
15

Dual nozzle

What two nozzles can do

Each nozzle can print a different material. Combine rigid and flexible filaments, reserve one nozzle for supports or speed up multi-color printing.

Multi-material

Flexible and rigid, low-cost and exotic materials in one print

Combine flexible and rigid materials in a single print to create interlocking structures beyond traditional manufacturing. Use premium engineering materials only where they are really needed.

Perfect supports with minimal waste and reloading

Reserve one nozzle for dedicated support material. Prints with supports become more reliable and the support interface comes out perfect.

Fast and efficient multi-color printing

Two nozzles cut the number of purge cycles in multi-color prints. Smart algorithms optimize filament use, so you save both time and material.

All in one

An all-in-one solution for personal manufacturing

Beyond 3D printing, H2D can handle laser engraving and cutting, digital cutting and pen drawing, so finished products come out of a single workshop.

The laser and cutting modules are not included. Upgrade H2D with the Laser Upgrade Kit and modules, sold separately.

Laser

Laser

10 W and 40 W 455 nm laser modules for engraving and cutting.

Digital cutting

Digital cutting

Precise cutting on a wide range of materials.

Pen drawing

Pen drawing

Drawing and writing directly on the material.

Live spatial alignment | BirdsEye camera

What you see is what you get

The BirdsEye camera and computer vision algorithms deliver top-view alignment accuracy of up to 0.3 mm, so you can place the tool path exactly where it belongs on the material.

Maximize material efficiency, minimize waste

Auto arrangement

Maximize material efficiency, minimize waste

Using live images from the BirdsEye camera, Bambu Suite arranges your project automatically around the shape of your material, such as leftover plywood from a previous project.

Laser upgrades

Safe and free of manual setup

Laser safety windows

Laser safety windows

Watch laser projects safely without the need for goggles.

Full-auto calibration

Full-auto calibration

A single tap starts laser focus verification and material measurement. No manual adjustments.

Material CodeSync

Material CodeSync

H2D scans the QR code on your material and loads the right preset.

Air assist

Air assist

High-speed air cools the laser path for cleaner surfaces and more precise results.

Vision Encoder

50 µm motion accuracy across the whole work zone

An ultra-accurate Vision Encoder plate and optical measurement with 5 µm resolution track and correct the toolhead motion. H2D achieves consistent, distance-independent 50 µm motion accuracy, an order of magnitude better than its predecessor.

The Vision Encoder is an optional accessory, sold separately.

motion accuracy
50 µm
optical measurement resolution
5 µm
Break free from size constraints

Work zone

Break free from size constraints

From laser engraving on large objects to printing oversized models, the generous work zone makes room for your most ambitious ideas.

Total volume for both nozzles
350 × 320 × 325 mm
Single-nozzle printing
325 × 320 × 325 mm
Dual-nozzle printing
300 × 320 × 325 mm

350 °C hotend | 65 °C chamber heating

Unleash high-performance materials

Active chamber heating to 65 °C and a hotend reaching 350 °C with precise closed-loop temperature control effectively prevent warping and deformation in engineering materials and ensure strong layer bonding.

High-temperature hotend up to 350 °C
High-temperature hotend up to 350 °C
65 °C active chamber heating
65 °C active chamber heating
Consistent printing at 600 mm/s

High-flow hotend

Consistent printing at 600 mm/s

The purpose-built H2D high-flow hotend prints reliably at 600 mm/s. Flow is not restricted mid-print, so speed stays high regardless of model size or complexity.

DynaSense extruder | PMSM servo

Intelligent sensing for precise extrusion

The proprietary Bambu Lab PMSM servo architecture samples torque, resistance and position at 20 kHz and continuously adjusts the motor. Extrusion stays stable, and filament grinding and clogs are detected early.

Nozzle camera

Monitor extrusion at the nozzle tip

An AI-backed nozzle camera with a macro lens tracks extrusion continuously and immediately detects material build-up, filament deviations and extrusion failures.

  • Nozzle clumping
    Nozzle clumping
  • Air printing
    Air printing
  • Spaghetti
    Spaghetti
Peace of mind, every time you print

AI pre-flight checklist

Peace of mind, every time you print

Before each job, the vision system scans the whole print surface for debris, identifies the nozzle sizes and build plate type and verifies that they match the active slicer settings.

15 sensors on one filament path

Filament monitoring

15 sensors on one filament path

Instead of a single run-out detector, a network of 15 sensors watches the path from the AMS to the nozzle. It tracks feeding speed, tension, filament tip position, extruder temperature and extrusion pressure.

What's in the box

  • Bambu Lab H2D

    Bambu Lab H2D

  • AMS 2 Pro

    AMS 2 Pro

  • Textured PEI build plate

    Textured PEI build plate

  • Spool holder

    Spool holder

  • Accessory box

    Accessory box

Frequently asked questions

Can H2D be upgraded to the laser version?

Yes, with the Laser Upgrade Kit. Its air pump is external and connects to the printer with an air tube. After the upgrade, H2D has the same functions and performance as H2D Laser Edition.

Are the left and right hotends the same?

Yes. They share the same structure and materials and are interchangeable.

How many AMS units can H2D use?

Up to 4 AMS 2 Pro and 8 AMS HT at the same time, a total of 12 units with 24 slots. With all AMS units on one nozzle and an external spool on the other, H2D can print up to 25 colors.

Is H2D compatible with the first-generation AMS?

Yes, the first-generation AMS works for multi-color printing out of the box but does not support filament drying. AMS lite is not compatible with H2D.

What are the two 4-pin ports on the back for?

They are reserved for future accessories. When upgrading to the laser version, the external air pump connects to one of them.

Can I use an A1 series hotend on H2D?

We do not recommend it. H2D hotends offer higher flow, a lower clogging risk, more precise left-right nozzle offset calibration and automatic type recognition. An H2D hotend can be used on A1 with the H2D silicone sock.

What is the difference between the 10 W and 40 W laser modules?

Both are blue lasers for wood, rubber, metal sheets, leather, dark acrylic and stone. The 10 W module cuts basswood plywood up to 5 mm and engraves at up to 400 mm/s; the 40 W module cuts up to 15 mm and engraves at up to 1000 mm/s.

Is a USB flash drive included?

No. Printing works without one thanks to the built-in storage. Without a USB drive, however, recording and time-lapse, starting prints over LAN, storing files on the printer from Bambu Studio and exporting logs are not available.

Notes

  1. All H2D figures are based on Bambu Lab internal testing. Actual results may vary depending on the individual unit, usage and environment.
  2. 50 µm motion accuracy requires the Vision Encoder. It is included with H2D Pro and sold separately for the other configurations.
  3. The 350 × 320 × 325 mm volume is available when printing with both nozzles using identical filaments.
  4. High-flow hotends are optional accessories. The 600 mm/s print speed was achieved with Bambu PLA Matte filament.
  5. The BirdsEye camera, laser safety windows and air pump come with H2D Laser Edition; other H2D printers gain them with the Laser Upgrade Kit. Laser and cutting modules are sold separately.
  6. Material CodeSync only works with official Bambu Lab materials.
  7. Do not leave laser work unattended and keep flammable materials away from the machine. Developer mode cannot be enabled while using the laser and cutting functions.
  8. Featured models: MOCA Pro by @thrutheframe, AirPods Max Case by @设计发射塔, Tesla Model S Plaid by @Mr.Rod. Creator projects are shown for illustrative purposes only.

Bambu Lab H2D

Multi-Material Printing Flexible and rigid, cheap and exotic materials in one print.

Special Support Material Perfect supports with minimal waste, flushing and priming.

Efficient Multicolor Printing Fast and efficient multicolor printing.

Digital Cutting Precise cutting of various materials

Pen Drawing Drawing and writing

Live Spatial Alignment What You See Is What You Get The H2D BirdsEye camera, combined with computer vision algorithms, provides top-view alignment accuracy up to 0.3 mm. This advanced spatial alignment allows users to place the toolpath in the right spot on the material – truly "what you see is what you get."*

Automatic Layout Maximize material efficiency, minimize waste Using real-time images from the BirdsEye camera, Bambu Suite can automatically arrange your project according to the shape of your material, e.g., plywood scraps from a previous project. This feature helps you use every material to the maximum.

Don't Worry About Safety – We Have You Covered

Air Purifier An optional air purifier ensures clean air even during internal laser operations.*

Don't Worry About Setup – We Have It Covered

Fully Automatic Calibration A single tap starts automatic laser focus verification and material measurement, eliminating manual adjustments.

Material CodeSync H2D automatically scans the QR code on your material and loads the perfect presets.*

Go Big, Go Fast, Go Precise Our Secret Weapon: Vision Encoder 50µm ultra-fine motion precision* An ultra-precise visual encoder plate combined with 5µm resolution optical measurements for tracking and correcting print head motion allows the H2D to achieve consistent and reliable 50μm motion precision independent of distance across the entire workspace, which is an order of magnitude better than its predecessor. (*Vision Encoder sold separately)

King-Size Workspace Free yourself from size limitations With a build volume of up to 350 mm × 320 mm × 325 mm*, creating large-scale projects has never been easier! From laser engraving on large objects to printing oversized models, the expanded capacity allows you to realize even your most ambitious ideas.

350°C Hotend & 65°C Chamber Heating Unleash the full potential of high-performance materials H2D, equipped with active chamber heating to 65°C and a high-temperature hotend reaching up to 350°C, provides precise closed-loop temperature control. This advanced system effectively eliminates warping and curling in high-performance materials, ensuring excellent layer bonding and maximizing their full potential.

TRUE High-Flow Hotend Consistently print at 600 mm/s with ease The specially designed high-flow hotend of the H2D ensures reliable high-speed printing at 600 mm/s. Designed for consistent performance, it eliminates flow limitations during printing, allowing continuous high-speed printing regardless of the size or complexity of the print.

DynaSense Extruder Intelligent sensing for precise extrusion control Bambu Lab's patented PMSM servo architecture creates an intelligent extrusion control system. It performs 20 kHz torque/resistance and position sampling for dynamic modulation of electromagnetic torque vectors. It stabilizes extrusion and detects filament grinding and clogging.

Smarter and Safer Experience Nozzle Camera Monitor extrusion at the nozzle tip H2D is equipped with an AI-supported nozzle camera and a macro lens. This intelligent monitoring system continuously tracks extrusion patterns and immediately detects material buildup, filament deviations, and extrusion failures.

AI Pre-flight Checklist Peace of mind with every print Before each operating cycle, the H2D visual system runs a comprehensive pre-flight checklist. 1. Chamber Integrity Scan detects debris across the entire printing surface. 2. Hardware Configuration Audit instantly recognizes nozzle dimensions and print plate properties. 3. Digital-Physical Alignment performs automatic consistency verification between detected hardware specifications and active slicer parameters.

SOTA Filament Monitoring 15 sensors on a single filament path Unlike older systems with single filament runout detectors, H2D is equipped with comprehensive material flow monitoring. Along the entire path from the AMS to the nozzle, 15 strategic sensors form an intelligent network that continuously monitors five key parameters: feed speed, tension, filament tip location, extruder thermal environment, and dynamic extrusion pressure. This creates a cutting-edge filament behavior management system.

Frequently Asked Questions

1. Can H2D be upgraded to a laser version?

Yes, an upgrade kit with instructions is coming, planned for June. The built-in and external air systems differ in construction.

2. Are the left and right hotends the same?

Yes, they have the same design and materials, and are interchangeable.

3. How many AMS units does H2D support?

Up to 4 AMS 2 Pro and 8 AMS HT – a total of 12 units with 24 slots. In extreme cases, up to 25 colors.

4. Is H2D compatible with first-generation AMS?

Yes, fully compatible, but does not support the filament drying function. It is not compatible with AMS lite.

5. What are the 4-pin ports on the back for?

For future accessories, e.g., an external pump when upgrading to the laser version.

6. Can a hotend from A1 be used on H2D or vice-versa?

No, they are not fully compatible. H2D has better flow, lower risk of clogging, automatic type detection, etc. An H2D hotend can be used on A1, but only with the silicone sock from H2D.

7. Differences between 10W and 40W laser?

•Cutting (poplar plywood): 10W up to 5 mm, 40W up to 15 mm

•Engraving speed: 10W up to 400 mm/s, 40W up to 1000 mm/s

•Processing area: 10W – 310×270×280 mm; 40W – 310×250×265 mm

8. Is there a USB in the package?

No. Printing works normally without USB, but time-lapse, log export, and LAN printing will not work.

9. Why can't I select a nozzle for pre-installed files?

When slicing, a specific nozzle (e.g., right) is already selected. However, you can choose the nozzle during your own slicing in Bambu Studio.

[embed]https://youtu.be/KRrZCW1flh0[/embed]

Vlastnosti

pa_vyrobce-

Printer specifications

Printer TypeFDM Enclosed
ConstructionCoreXY
Extruder Count2
Build area325 × 320 × 325 mm
Max. bed temperature120°C
Max. nozzle temperature350°C
Heated chamberYes
Max. chamber temperature65°C
Max. speed1000 mm/s
Max. acceleration20000 mm/s²
Multi-color printingYes
CameraYes
Skill LevelIntermediate
