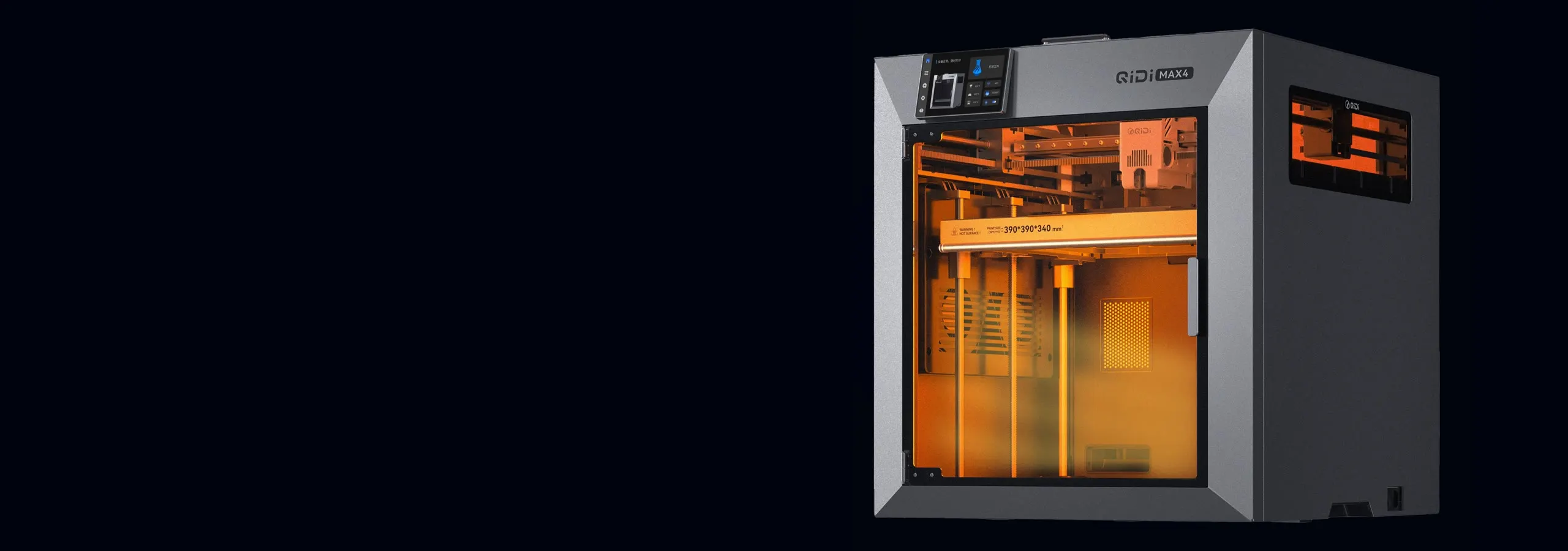

QIDI Max4 Combo – Industrial Performance in a Desktop Format

QIDI Max4 Combo represents a top-tier large-format CoreXY 3D printer for demanding users, companies, and production facilities that need large volume, high speed, and full temperature control.

With a build space of 390 × 390 × 340 mm, an actively heated chamber up to 65 °C, and a high-temperature nozzle of 370 °C, the Max4 handles printing not only standard materials but also advanced technical filaments such as PA, PC, ABS/ASA, or carbon and glass fiber reinforced composites without compromise.

The Combo variant adds extended equipment and is ideal as a comprehensive "all-in-one" solution for professional use.

Main Advantages of QIDI Max4 Combo

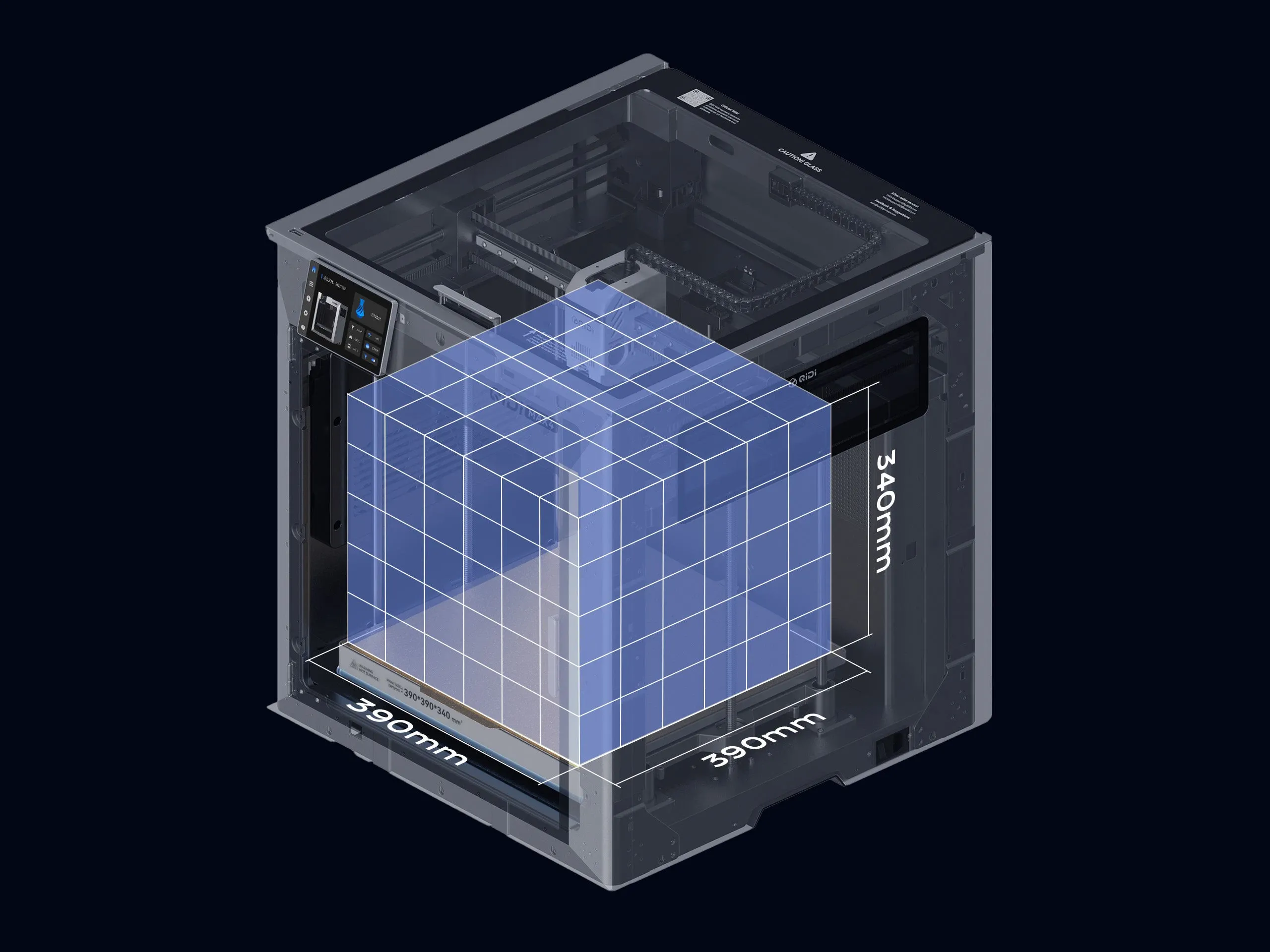

• Huge build volume 390 × 390 × 340 mm – ideal for large functional parts, jigs, fixtures, and small series.

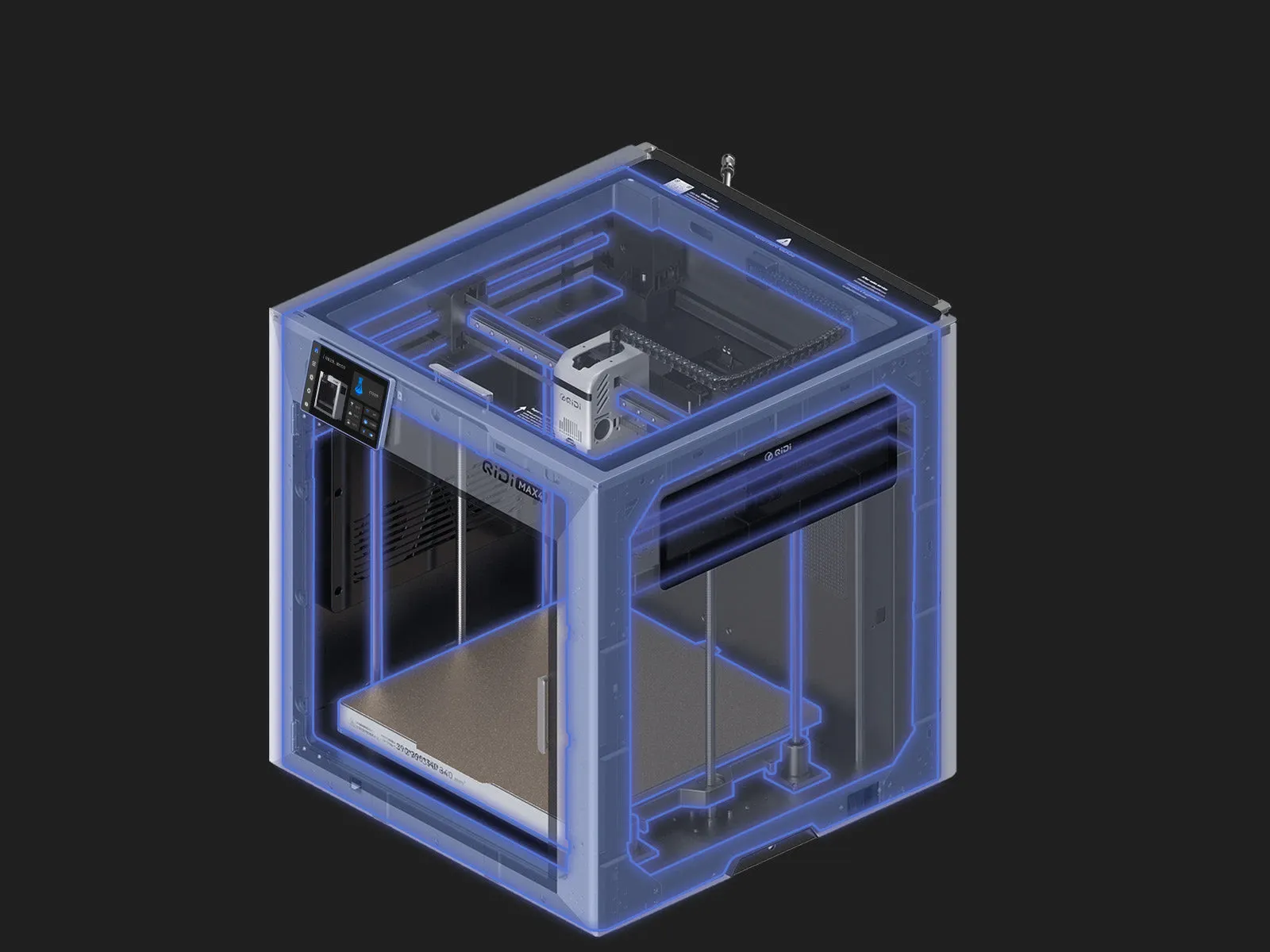

• CoreXY kinematics and full metal frame – high rigidity, precision, and stability even at high speeds.
• Speed up to 800 mm/s, acceleration up to 30,000 mm/s² – FOC closed-loop stepper motors and linear guides for fast and precise production.
• 1. generation actively heated chamber up to 65 °C
  – minimizing warping and delamination for large parts made of ABS, ASA, PA, PC, and composites.

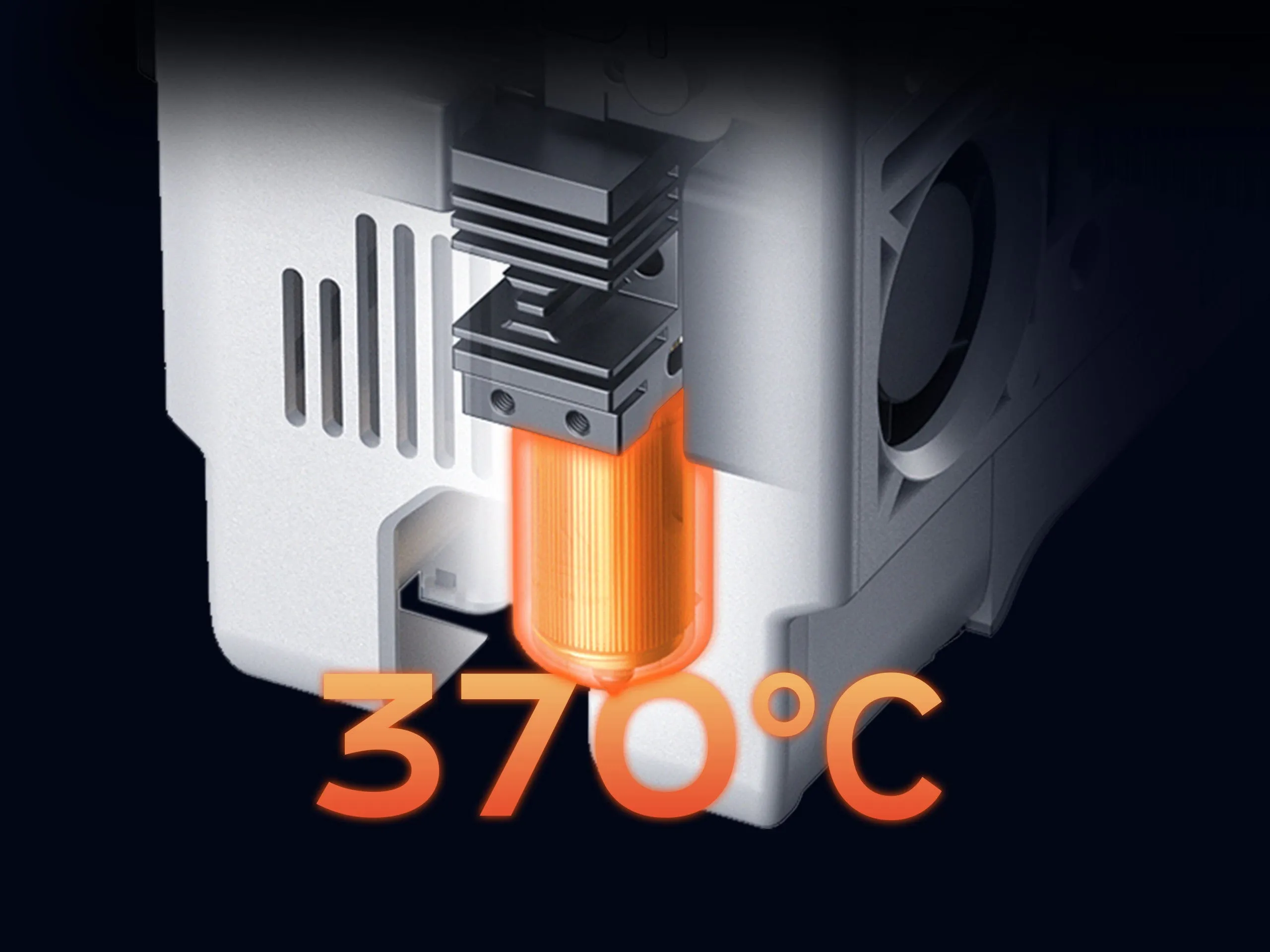

• High-temperature bimetallic nozzle 370 °C – printing of demanding technical and filled filaments.

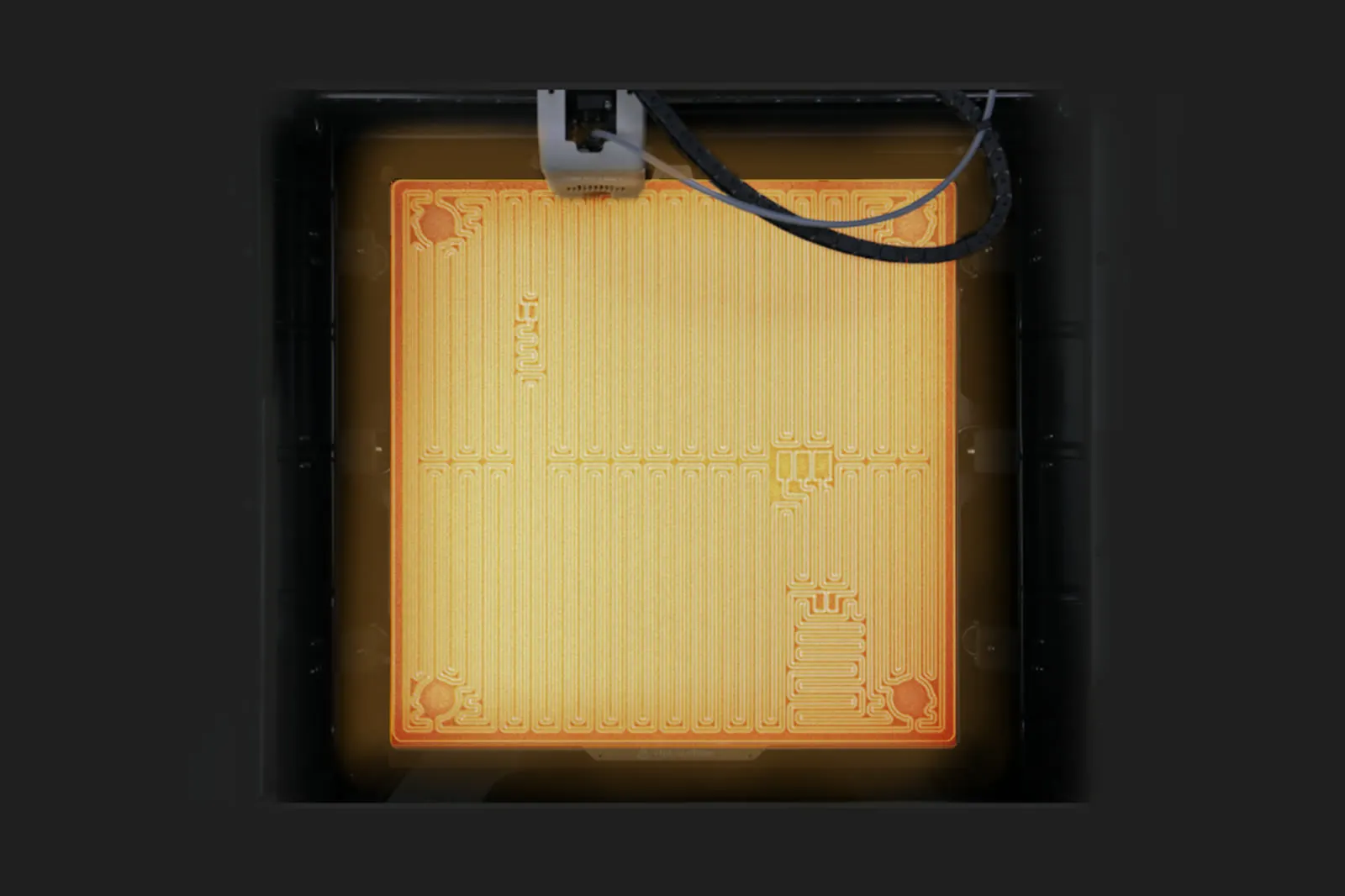

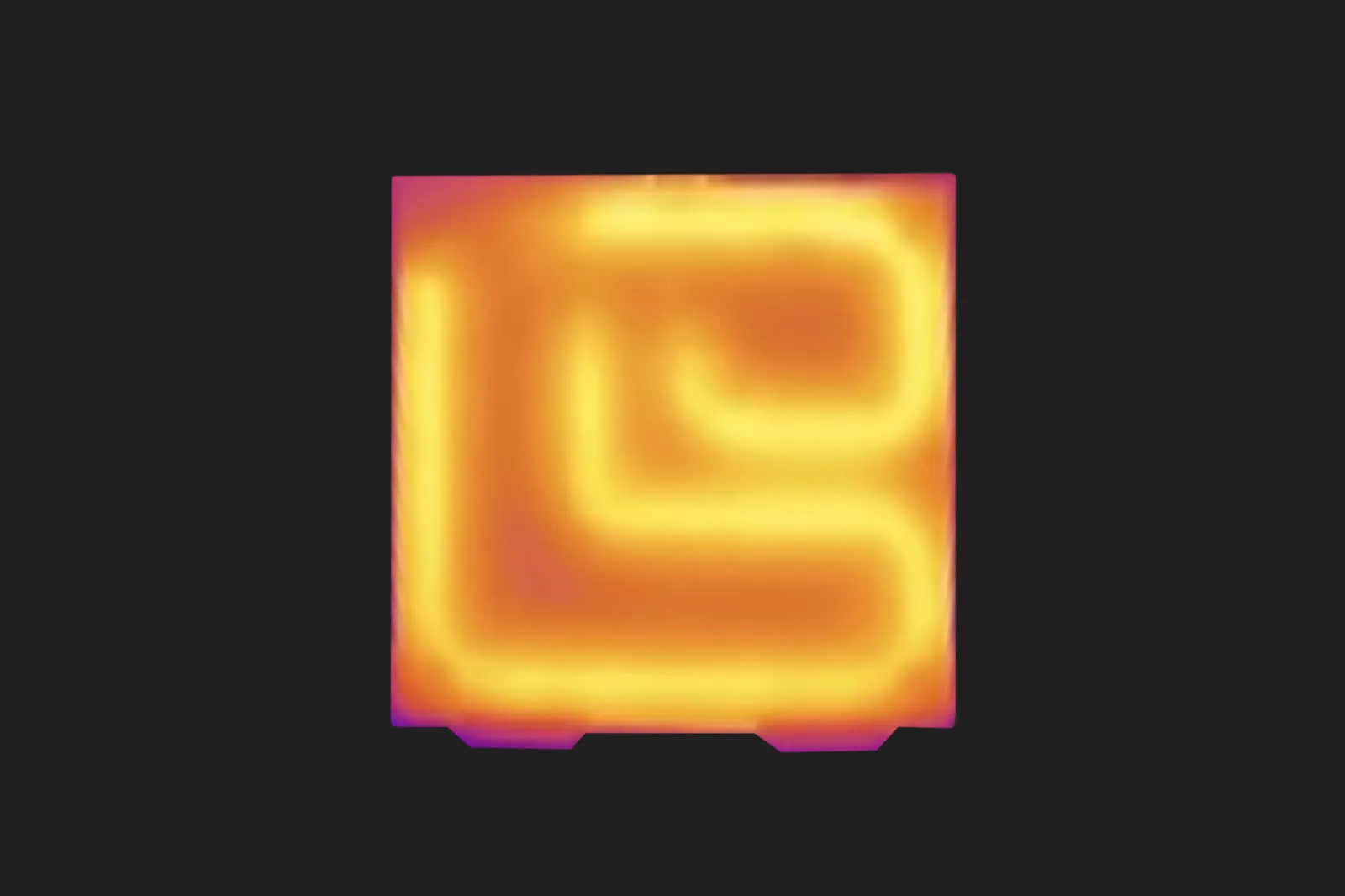

• Heated bed up to 120 °C with an aluminum base and silicone heater – fast heat-up and extremely uniform heating.
• Double-sided textured PEI flexible sheet – excellent adhesion and easy removal of prints by bending the sheet.

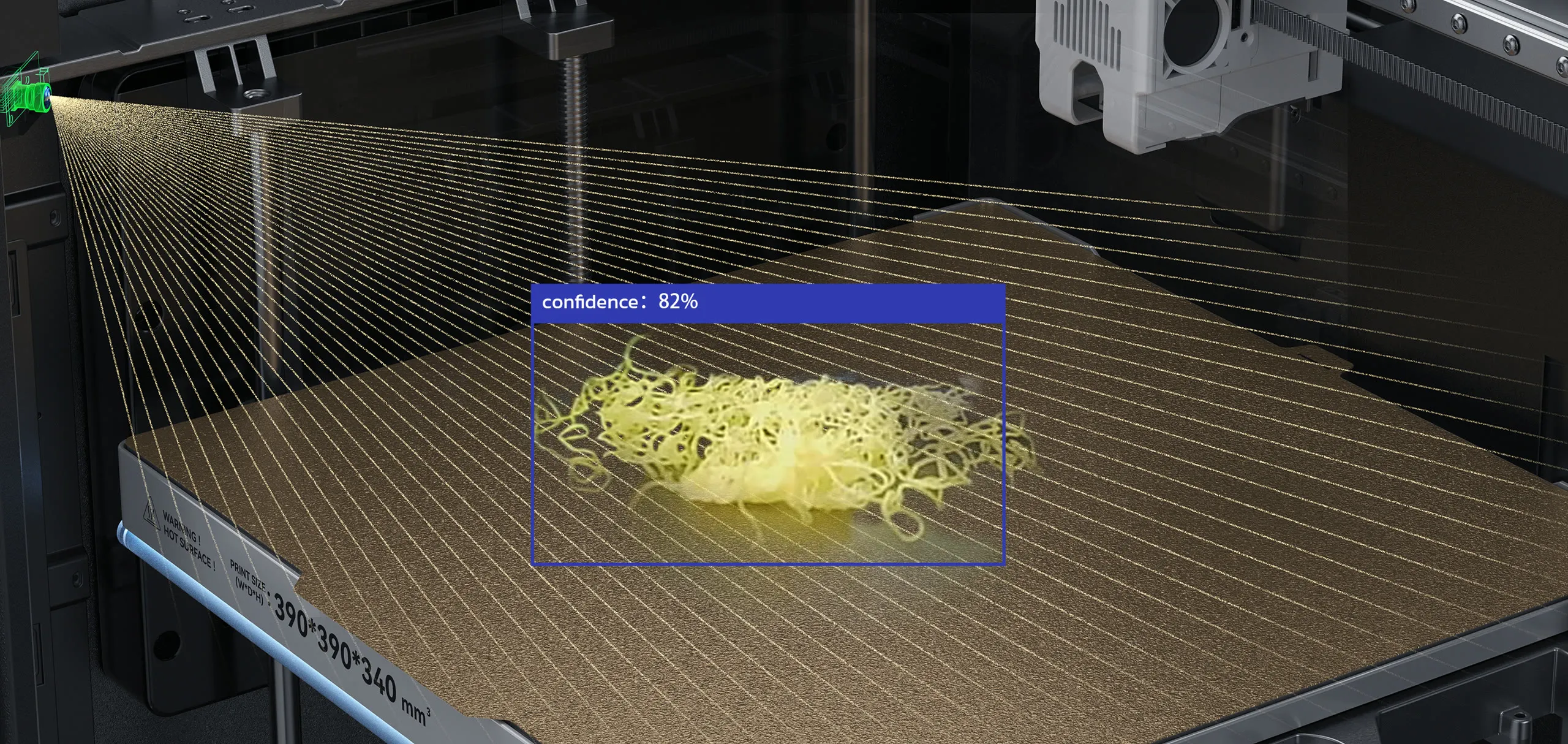

• AI camera in the print chamber – print monitoring, remote control, and better quality assurance.
• Active Cooling Air Control System – air flow management for a combination of heated chamber and targeted cooling, also suitable for large PLA prints.

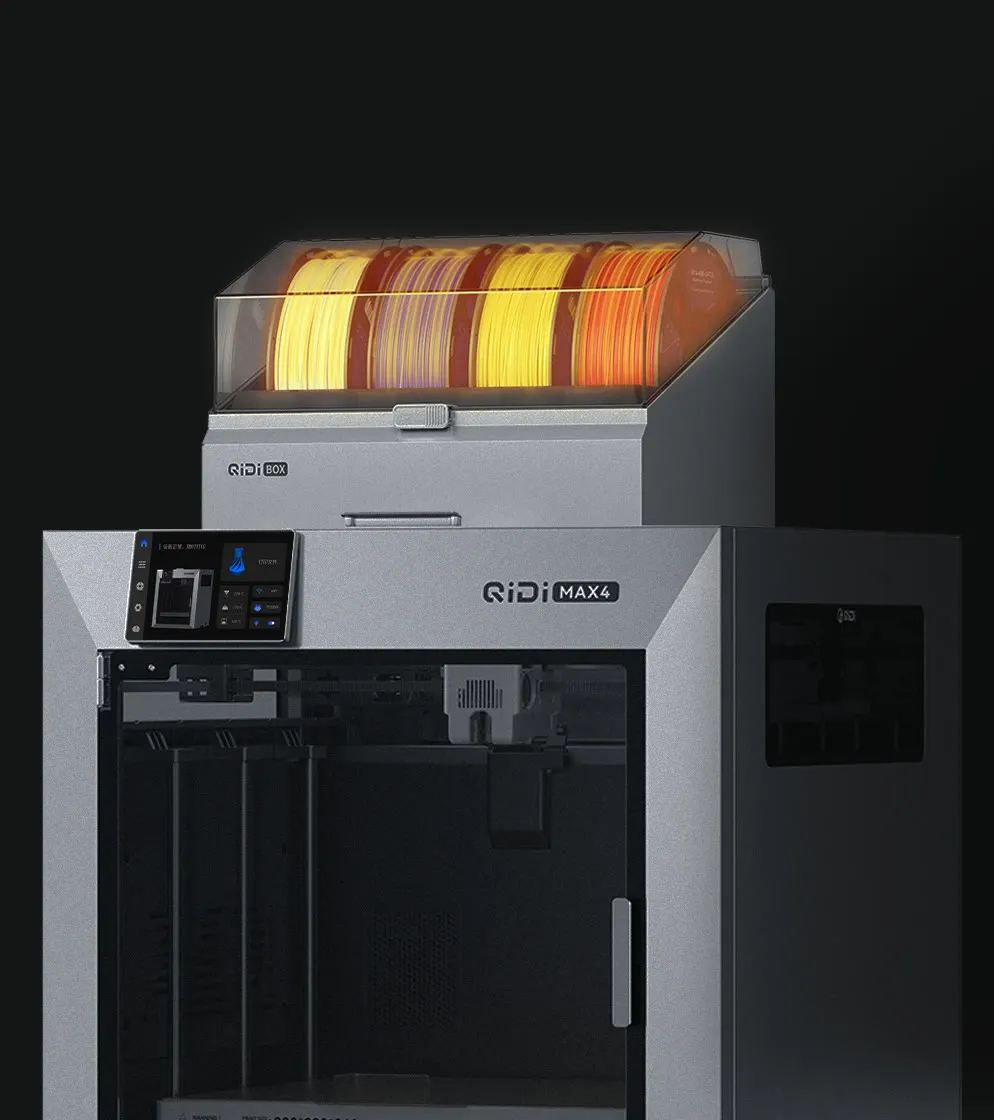

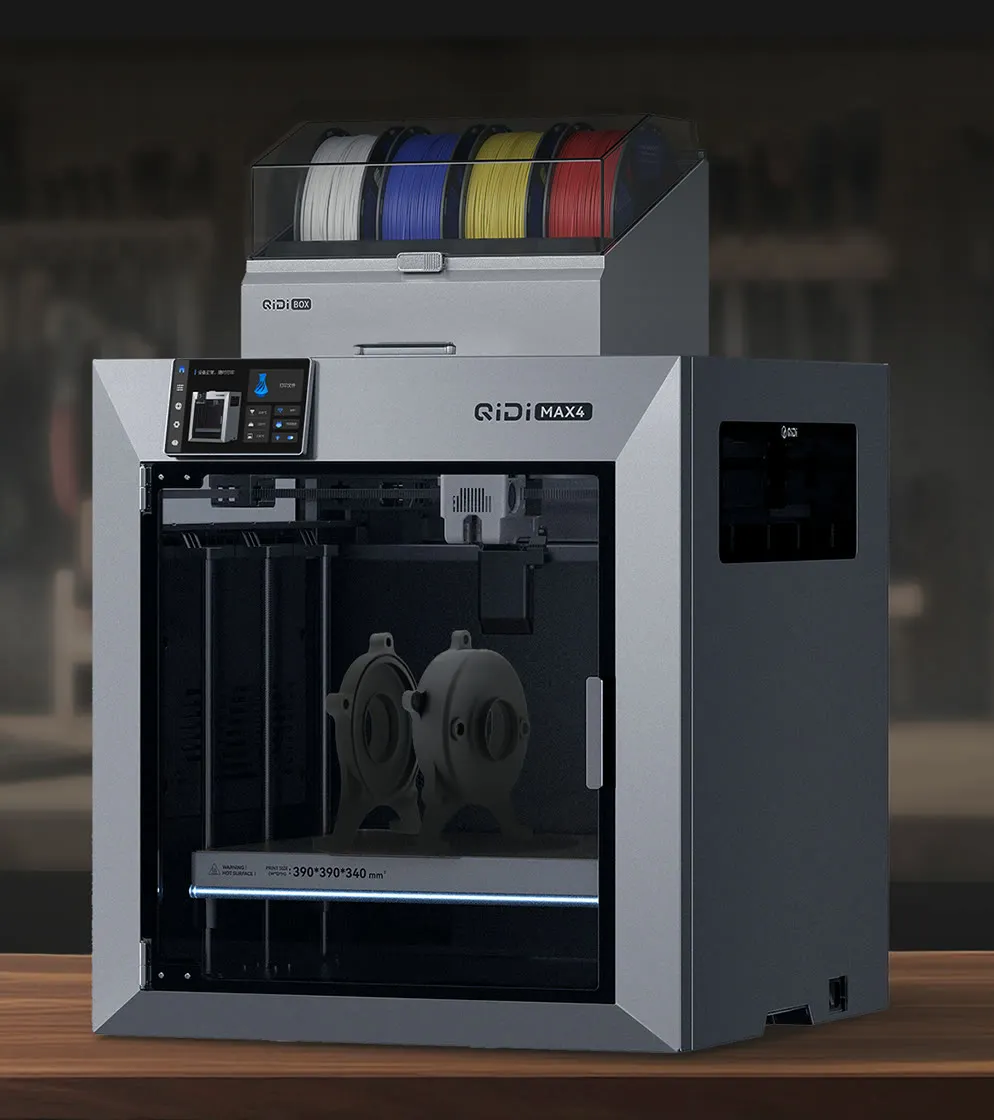

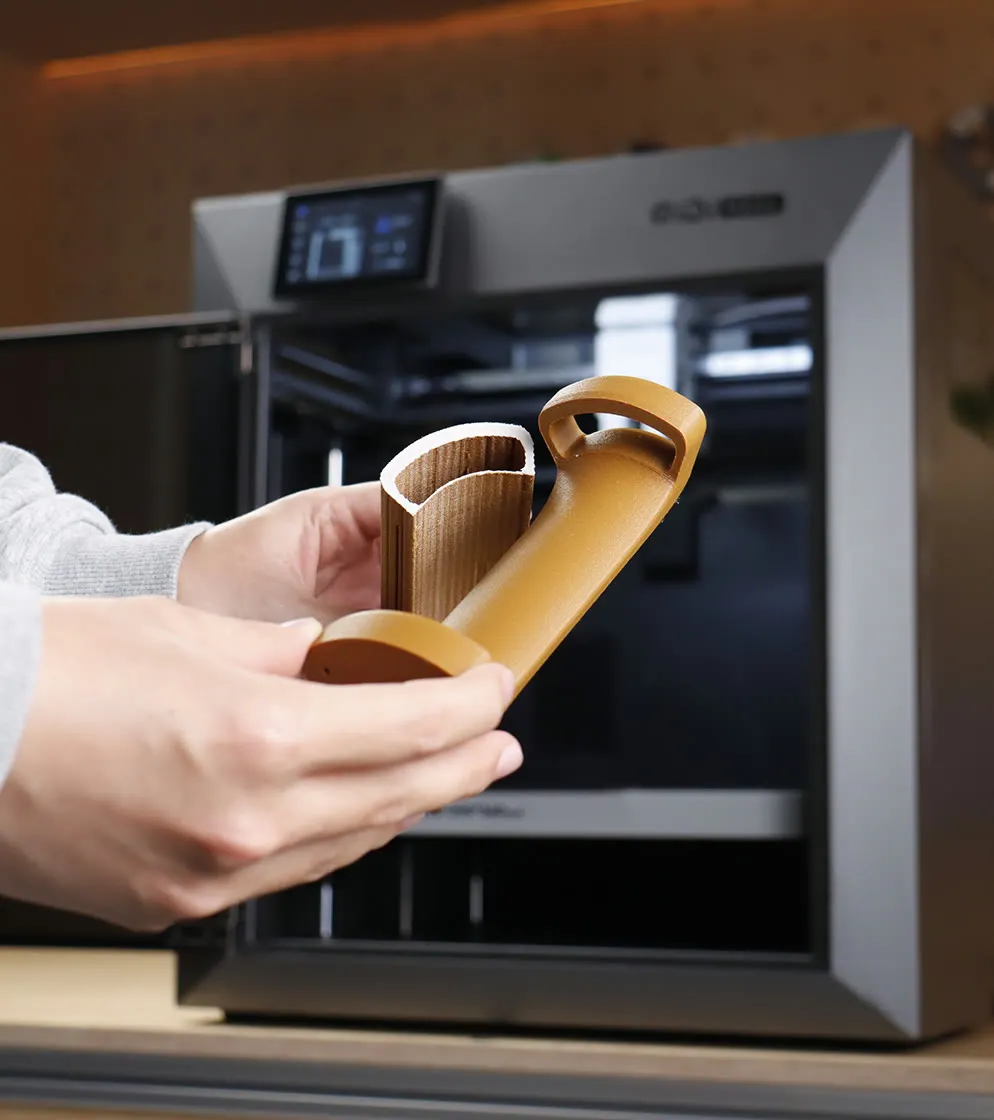

• Ready for multi‑color / multi‑material – compatibility with the QIDI Box system for multi-color and multi-material printing.

Printing Possibilities and Materials

QIDI Max4 Combo is designed as a high-temperature industrial FDM printer that can handle a wide range of filaments:

• Standard materials: PLA, PETG, TPU
• Engineering plastics: ABS, ASA, PA (Nylon), PC
• Composites: carbon and glass fiber (CF/GF filled filaments)

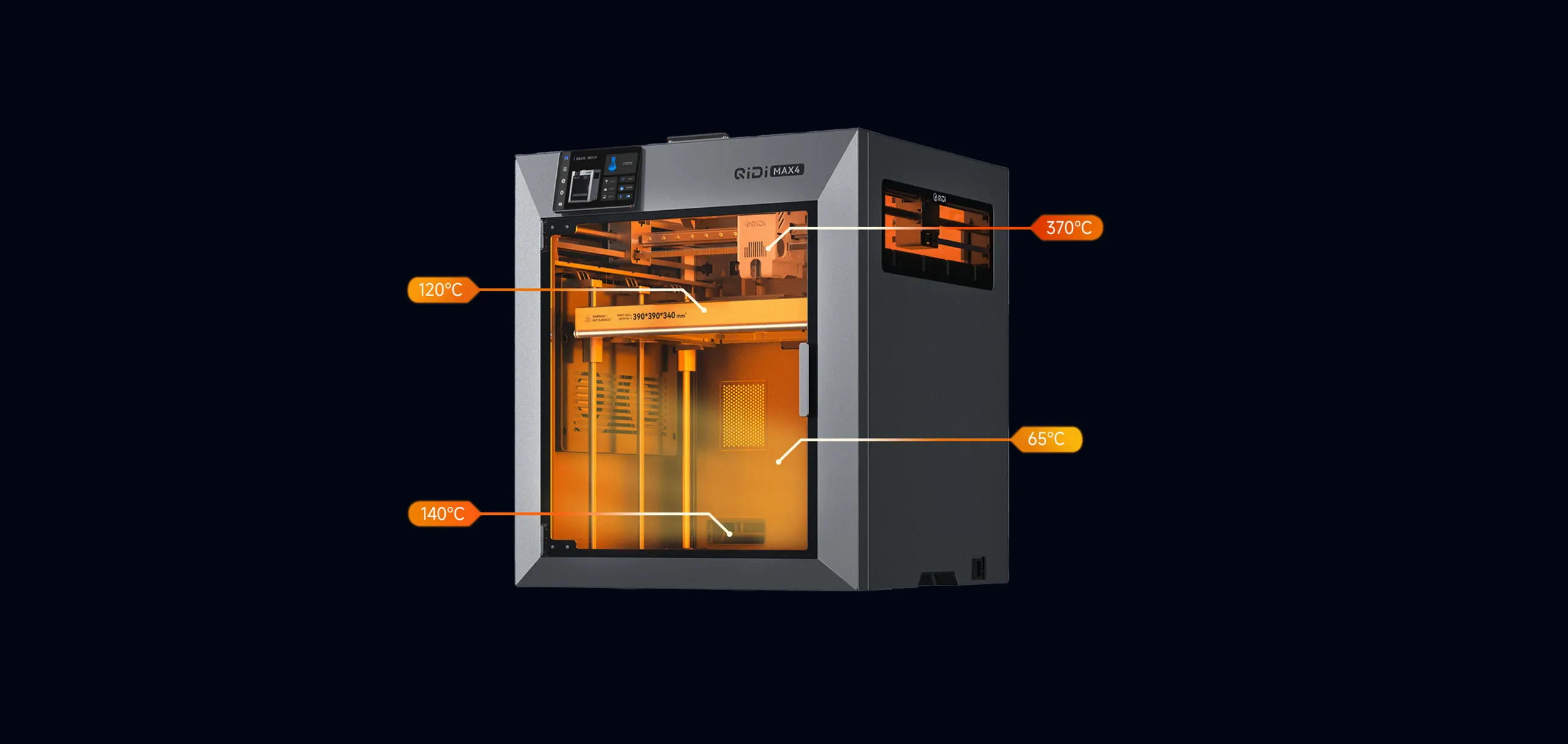

Thanks to the combination of a 370 °C nozzle, 120 °C bed, and 65 °C chamber, you can safely print large and mechanically stressed parts without deformation or layer cracking.

Construction and Mechanics

• CoreXY movement – fast and quiet system with minimized mass in the Z-axis.
• FOC closed-loop stepper motors – higher precision, lower risk of lost steps.

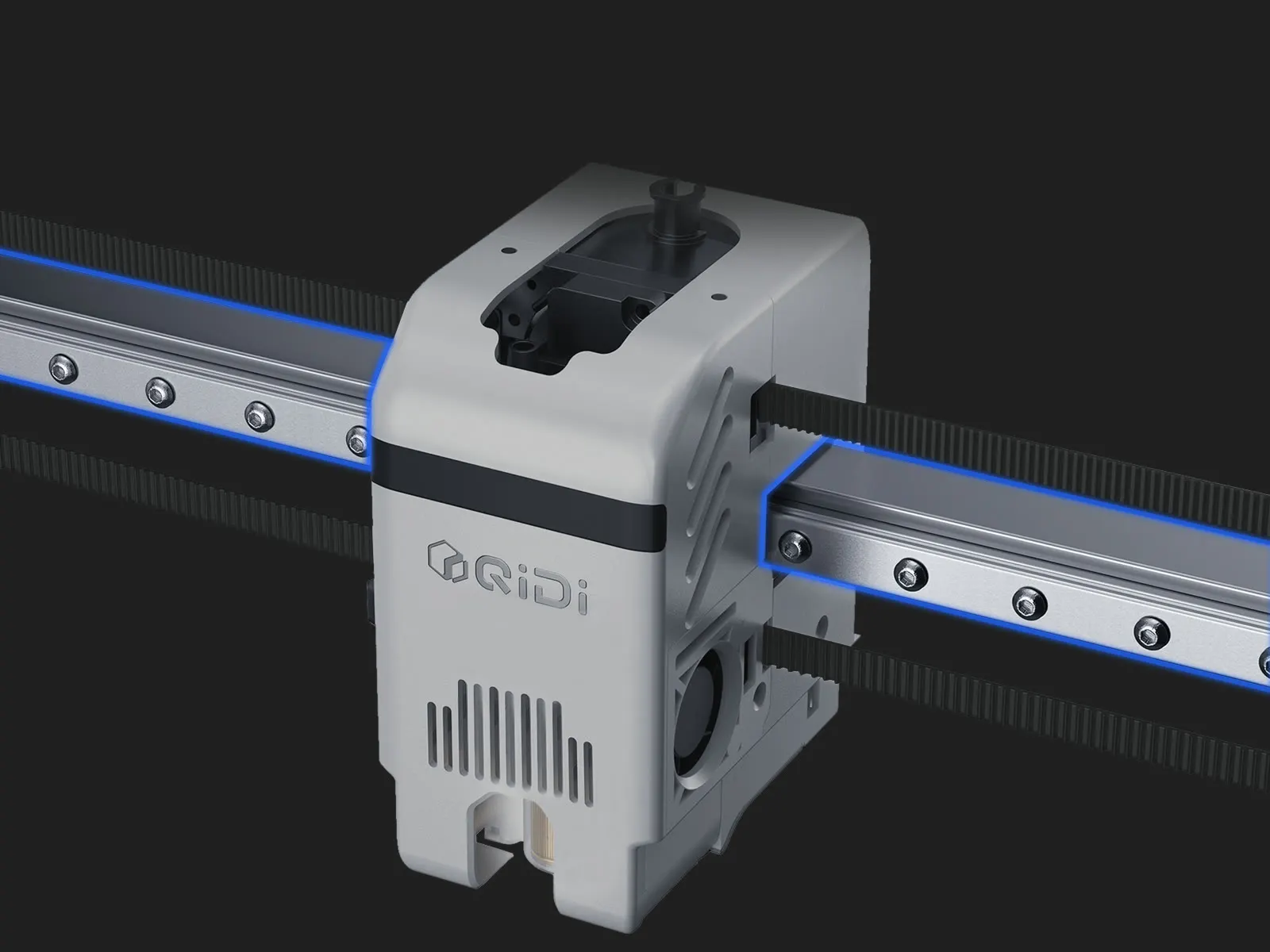

• Linear guides on the X-axis and steel linear shafts on Y/Z – long-term precision, low friction, and smooth operation.
• 1.5GT timing belts – higher tooth density for finer movement and reduction of vibrations (VFA).
• Dual Z-axis screw (2mm lead screw) with anti‑backlash nut – stable lifting of the large bed.

Temperature Control and Surface Quality

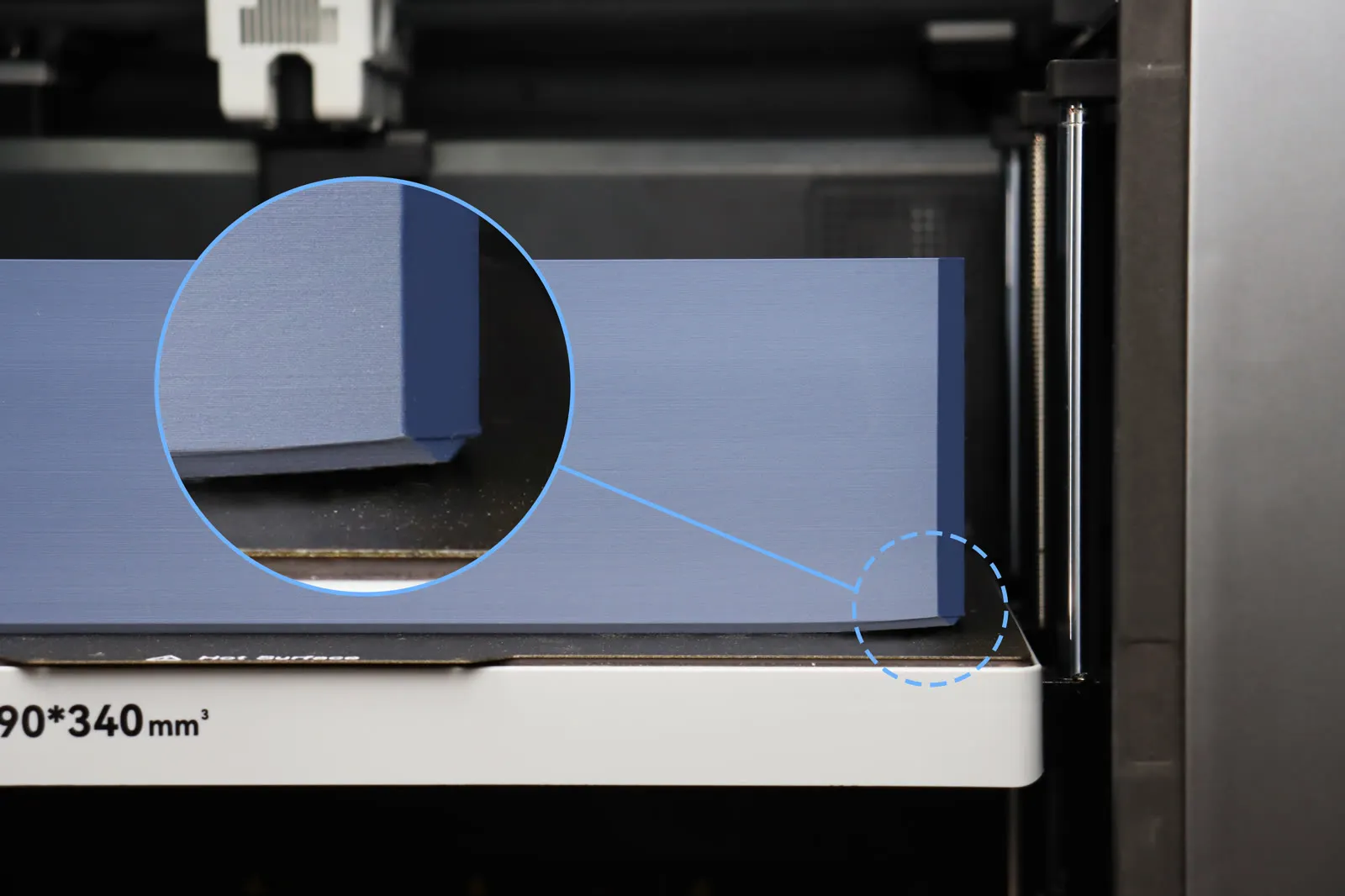

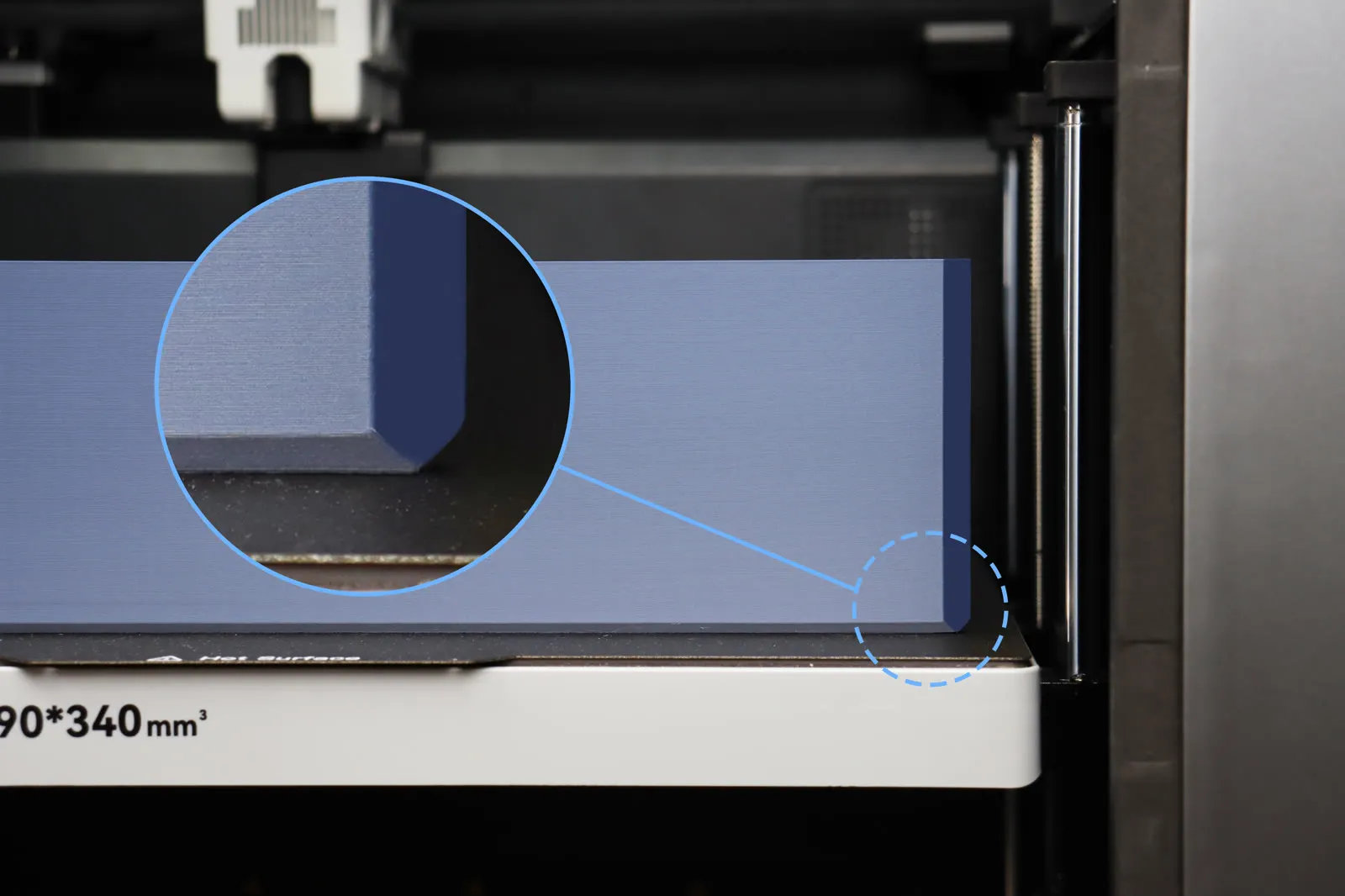

• Active chamber heating up to 65 °C – essential for large technical plastic parts.
• Active Cooling Air Control System – precisely controlled air flow prevents hotend overheating while allowing printing in a warm chamber.

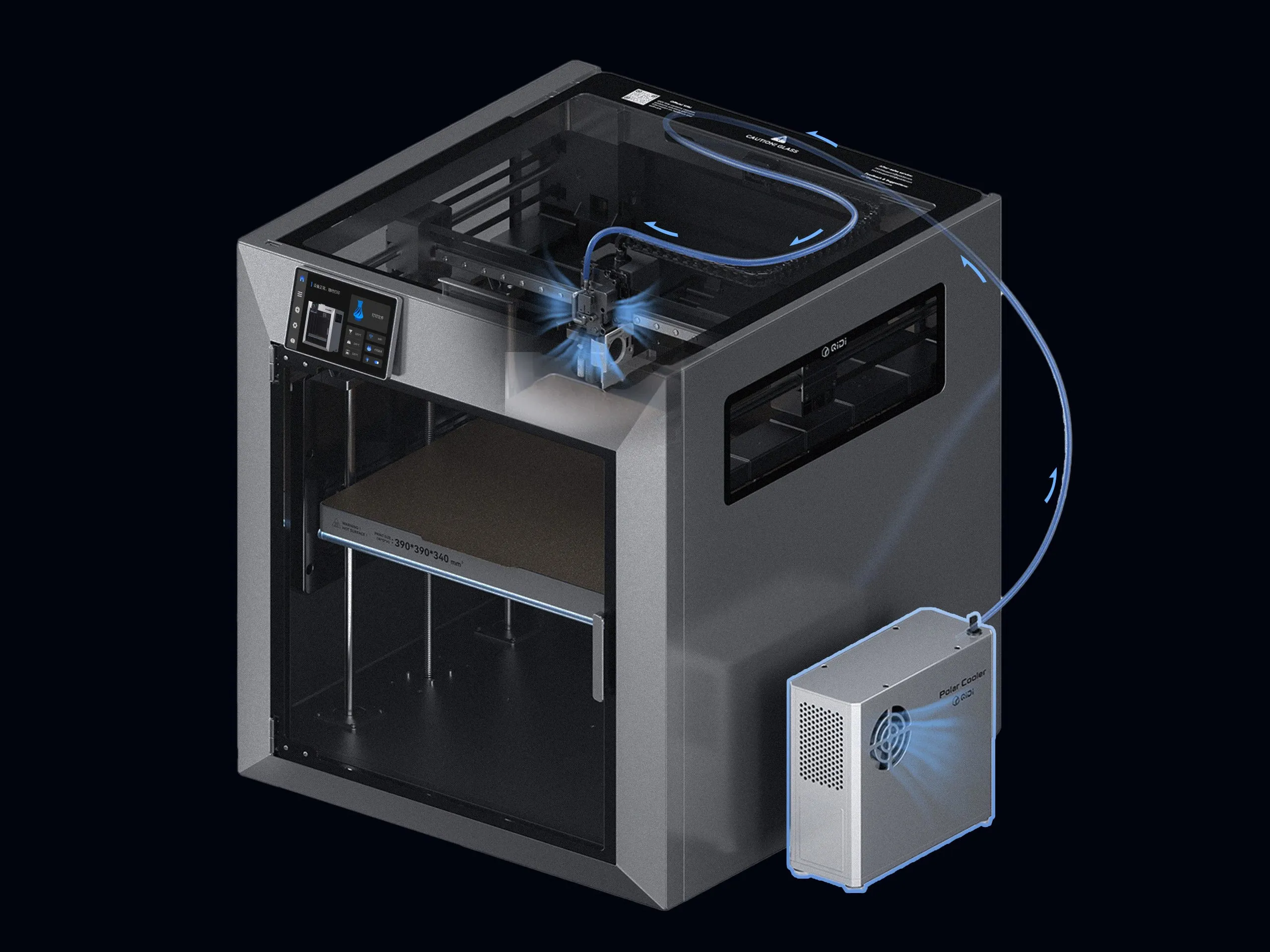

• Polar Cooler (included in Combo) – intensive extruder cooling for trouble-free printing of sensitive materials (e.g., PLA) in an enclosed chamber.

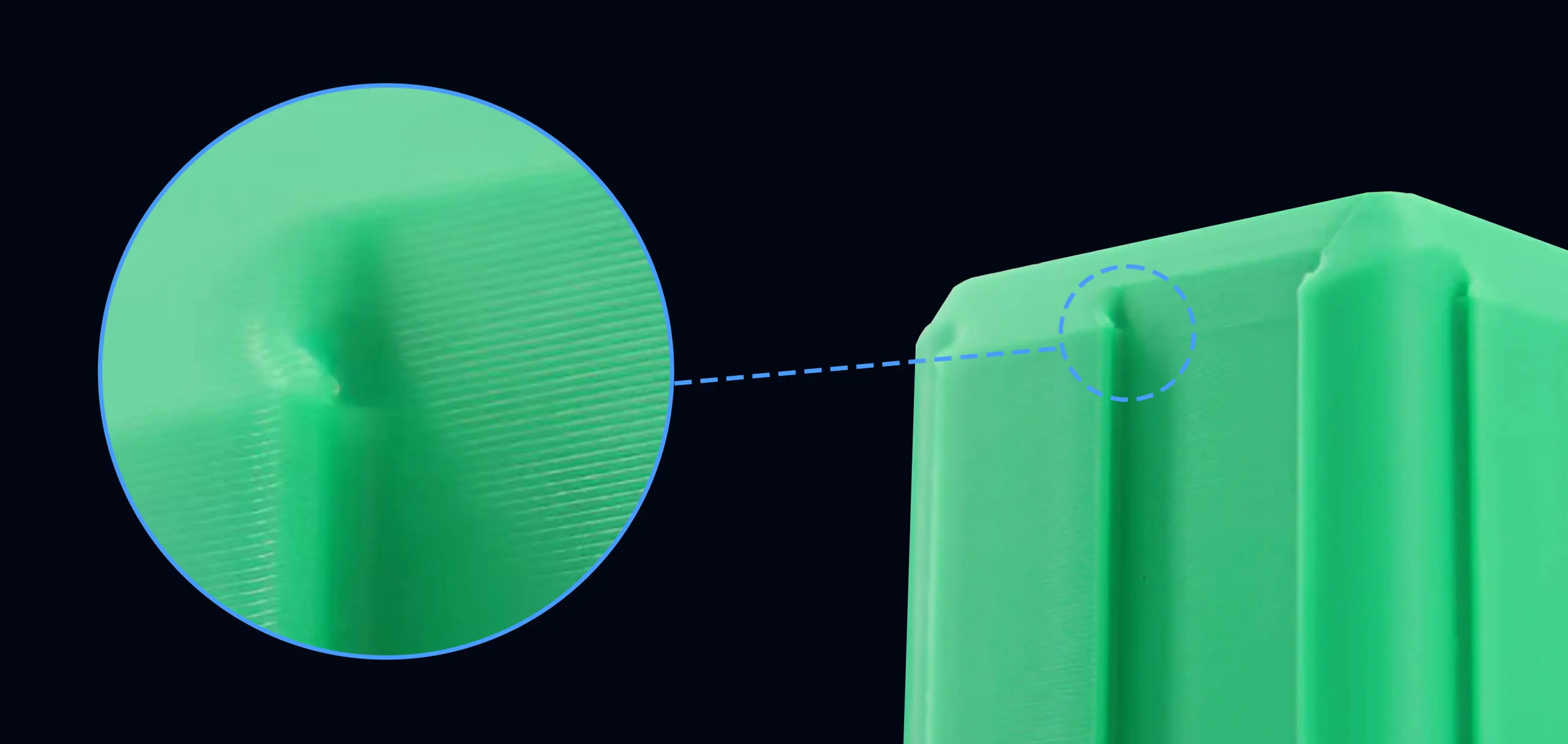

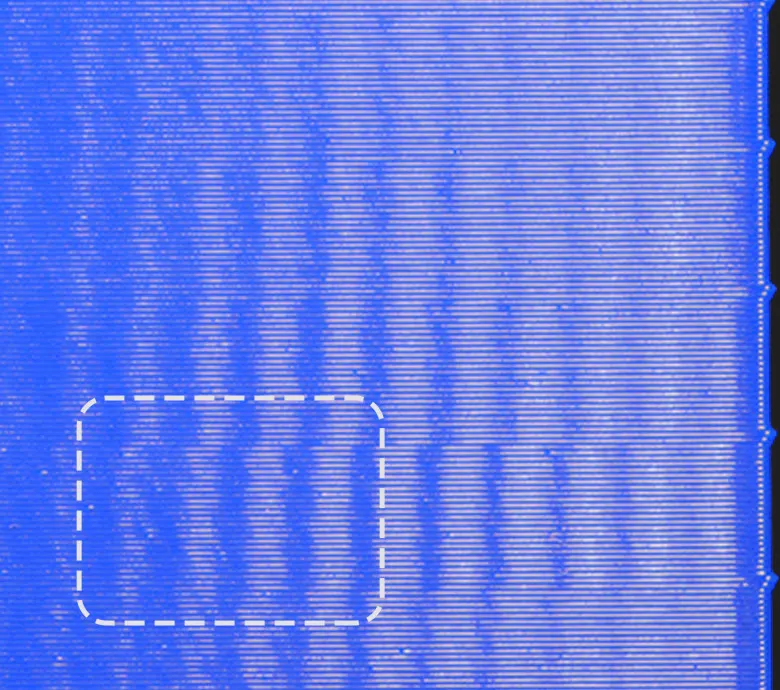

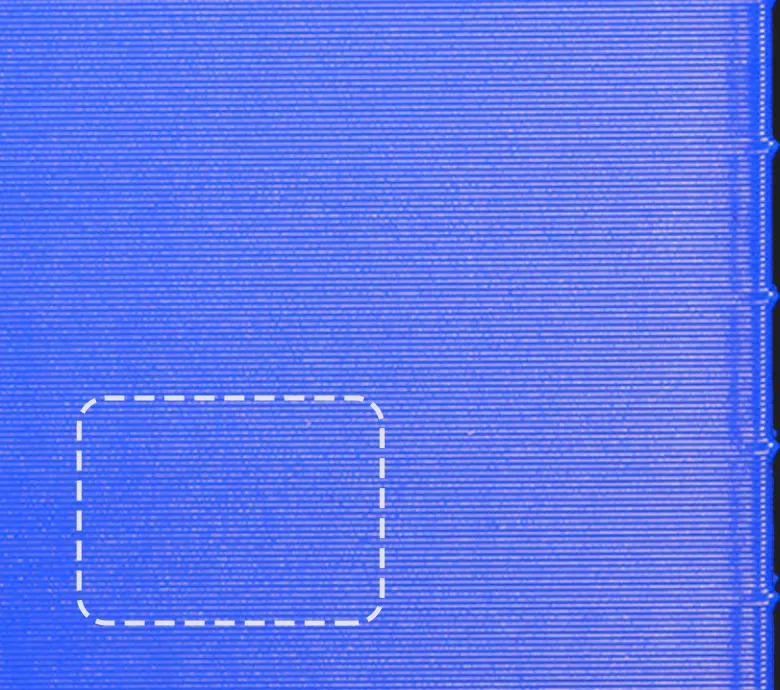

• Vibration optimization and resonance compensation – significantly better surface quality even at high speeds.

User Comfort and Software

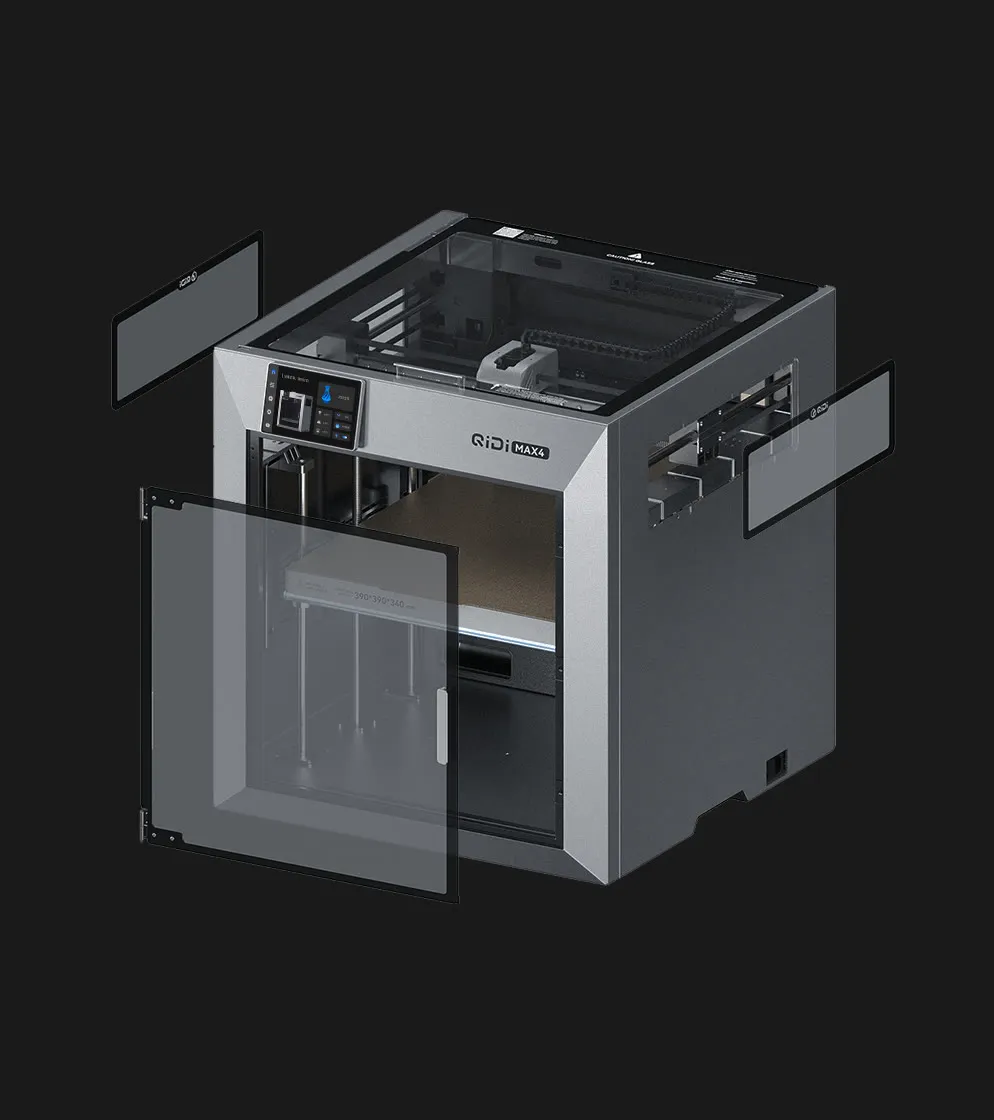

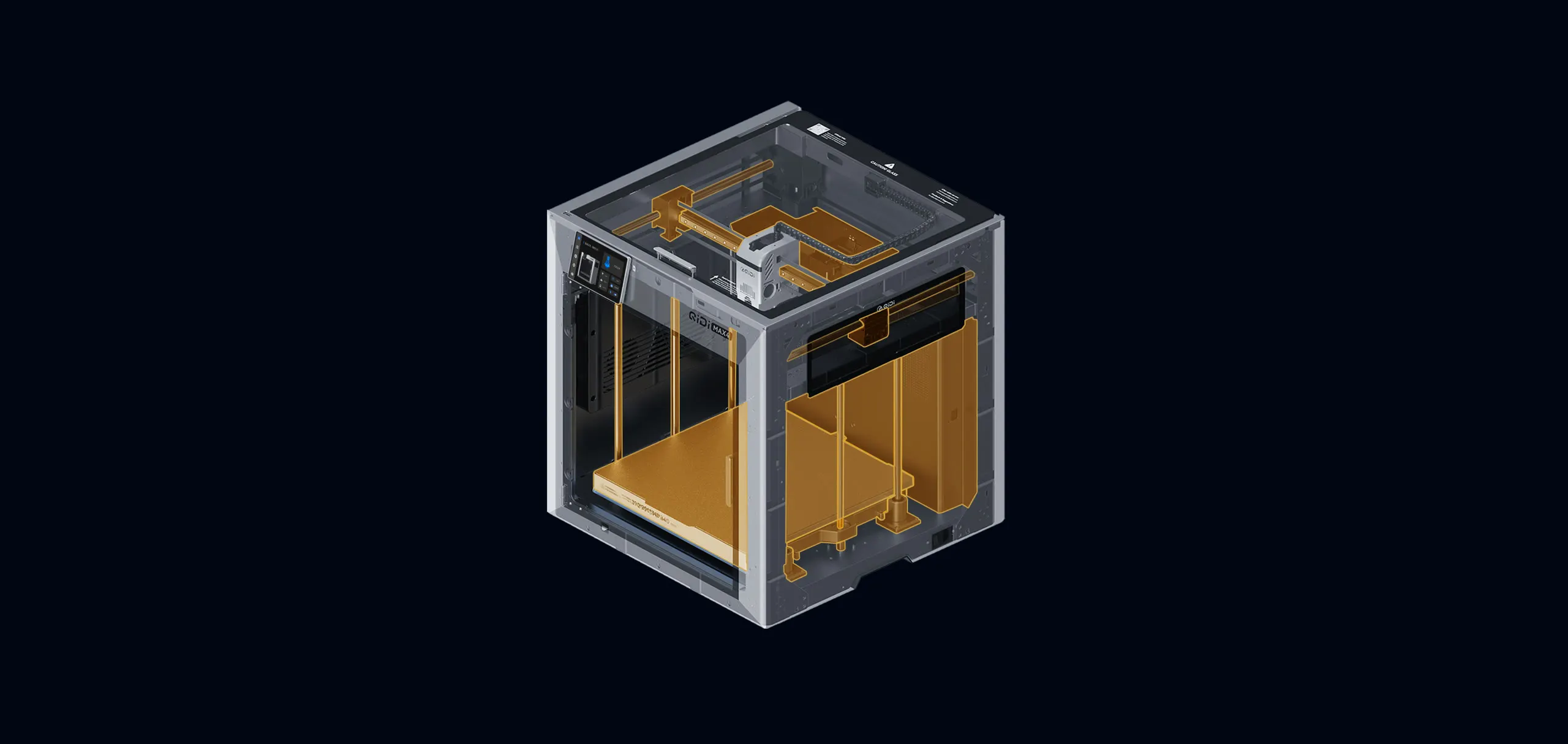

• Enclosed and partially insulated all-metal cabinet – safe and quiet operation.
• AI camera in the chamber for remote print monitoring.
• Intuitive touch control and calibration guide.

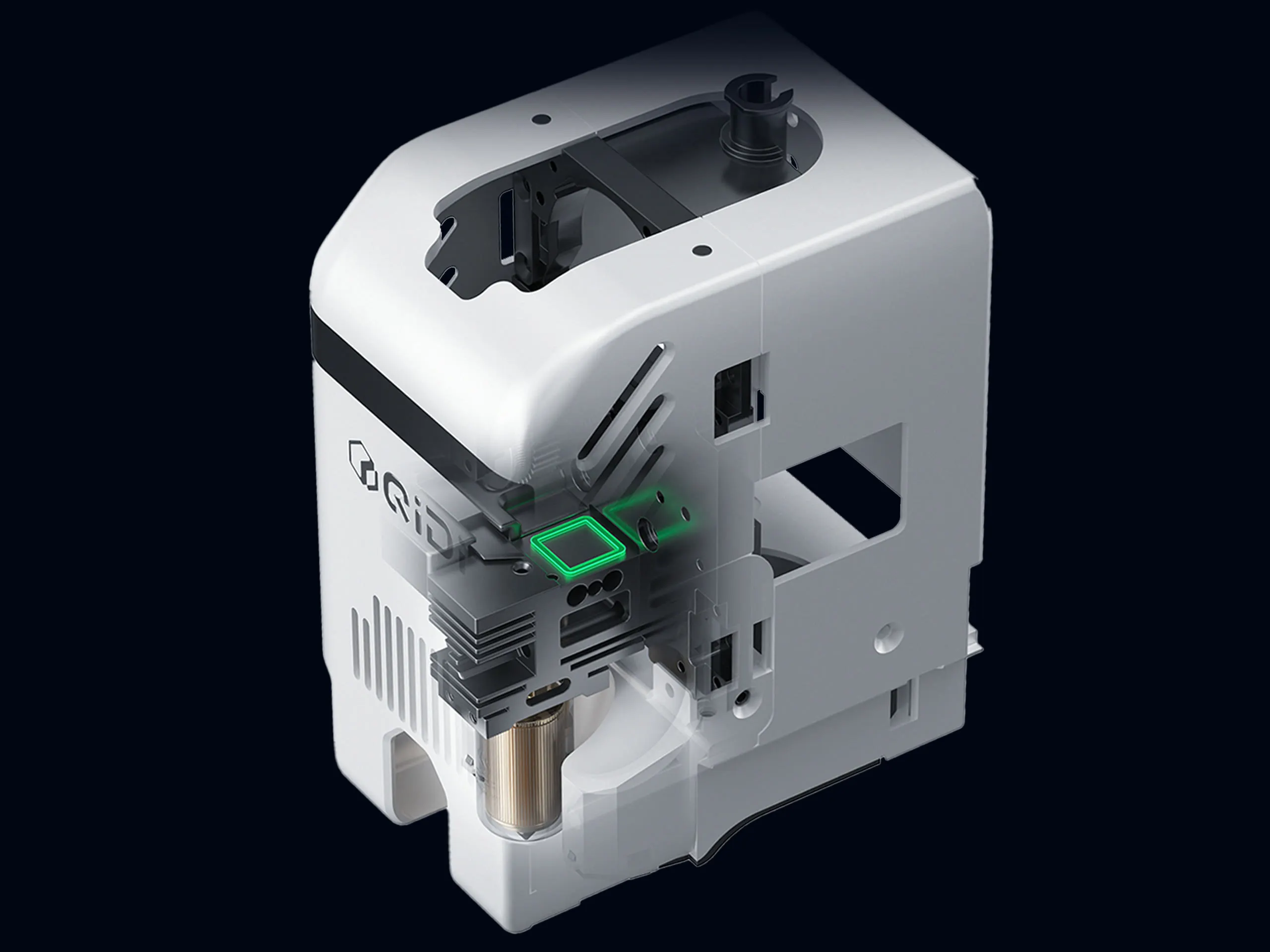

• Automated or significantly simplified nozzle height and bed leveling calibration using a new generation leveling sensor.
• Support for QIDI Print / QIDI Box slicer with preset profiles for a quick start and optimal results.

Typical Use

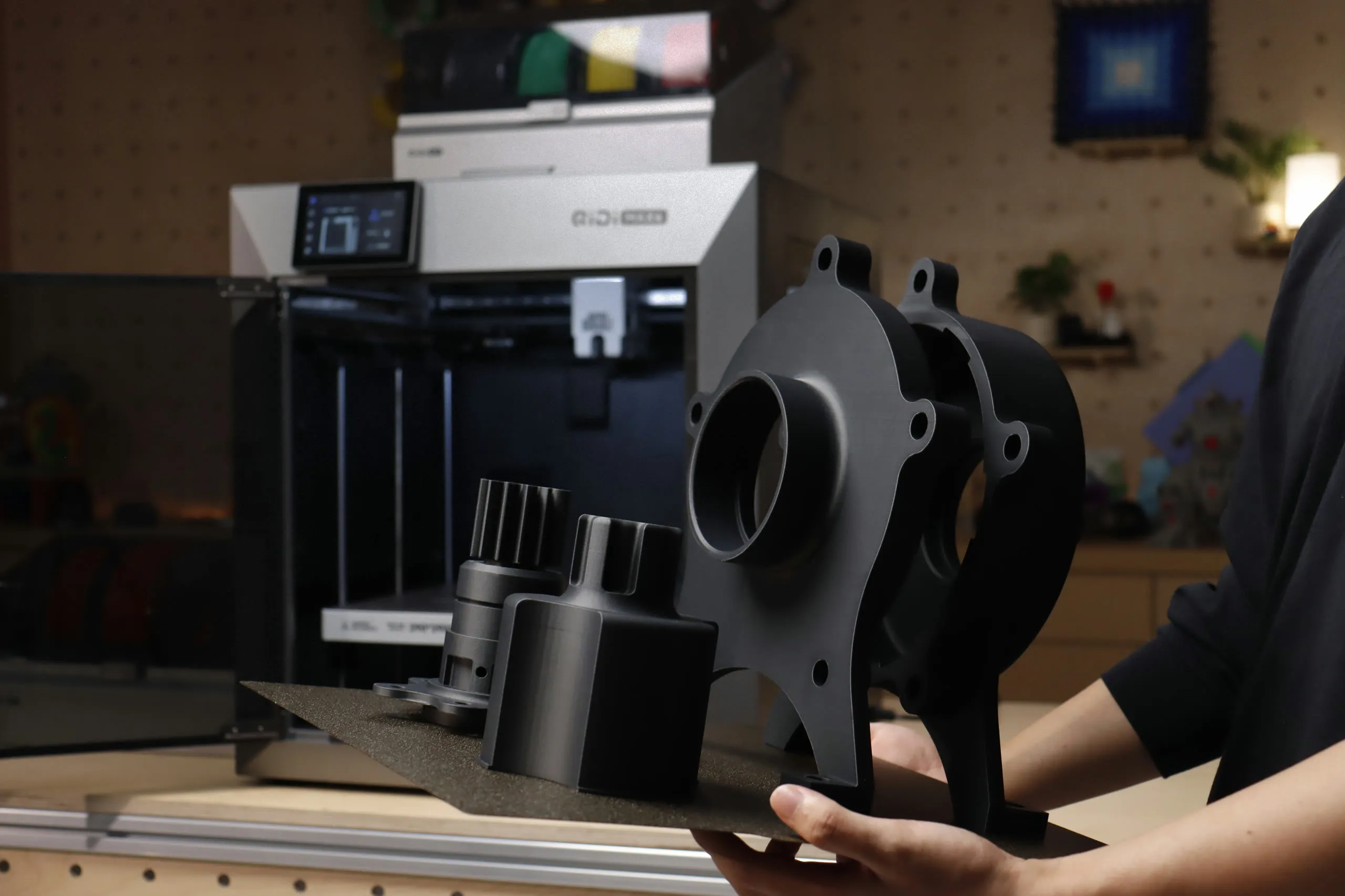

• Prototyping and development – fast production of large functional prototypes.
• Jigs and tools production – durable parts made of PA‑CF, ABS/ASA, PC for industry.
• One-off and small series production – repeatable production of end-use parts.
• Education and R&D – universal machine for experiments with a wide range of materials.

Technical Parameters QIDI Max4 Combo

Who is QIDI Max4 Combo suitable for?

• For advanced hobby users who want to move to large-format and technical printing.
• For small and medium-sized companies looking for an affordable alternative to large industrial machines.
• For manufacturing and service centers that need a reliable 3D printer for repeatable printing of functional parts.

QIDI Max4 Combo is an ideal choice where large volume, speed, repeatability, and the possibility of technical material printing are the top priorities.

Key Features:

• Huge build volume 390 × 390 × 340 mm for large functional parts and small series
• Enclosed CoreXY construction with all-metal frame for maximum stability and precision
• Actively heated chamber up to 65 °C for reliable printing of technical materials without warping
• High-temperature bimetallic nozzle 370 °C and heated bed 120 °C
• Extremely fast printing – up to 800 mm/s and acceleration 30,000 mm/s² thanks to FOC closed-loop motors and linear guides
• Double-sided textured PEI flexible sheet for perfect adhesion and easy model removal
• Active Cooling Air Control System and Polar Cooler (Combo) for printing in a warm chamber even with PLA
• Integrated AI camera for remote print monitoring and quality control
• Support for a wide range of materials including PA, PC, ABS/ASA and CF/GF composites
• Ready for multi‑color and multi‑material printing via QIDI Box
